Pipe flange robot double gun welding workstation
Equipment Brief Description
The pipe flange robot double-gun welding workstation adopts a dual-robot, dual-station layout (the robot is arranged in the middle and the stations are on both sides of the robot), which can simultaneously perform workpiece clamping, loading and unloading and welding operations, and can significantly improve work efficiency. The workstation can complete two welding methods: argon arc welding (self-melting, automatic wire feeding and filling welding) and gas shielded welding (DC welding). It is suitable for welding workpiece pipes and flange heads, and is especially optimized for the welding needs of LP water pump water pipes.
Equipment Features
- Efficient welding: Dual robots work simultaneously, with a dual-station layout, greatly improving welding efficiency; the welding speed is fast, and the weld can be strong and reliable.
- Accurate and reliable: Equipped with a 3D visual laser weld tracking system, combined with the weld laser scanning visual assistance function, it can realize weld correction, parameter optimization and path planning to ensure welding accuracy;
- Convenient operation: The robot operation program can be directly called, and the welding program can be added and uploaded at will without affecting other programs; the equipment has low environmental requirements and is easy to operate.
- High-quality welds: The welds are evenly formed and straight, the width and height are adjustable, and the joints have no defects such as weld nodules, arc pits, undercuts, and false welds; the workpiece anti-deformation design is used to correct welding deformation and avoid stress deformation problems.
Operation Flow
Manual clamping of workpieces.
Automatic start positioning.
Using the host computer program to call the pre-made welding program, the laser automatically scans the weld position.
Robot automatic welding.

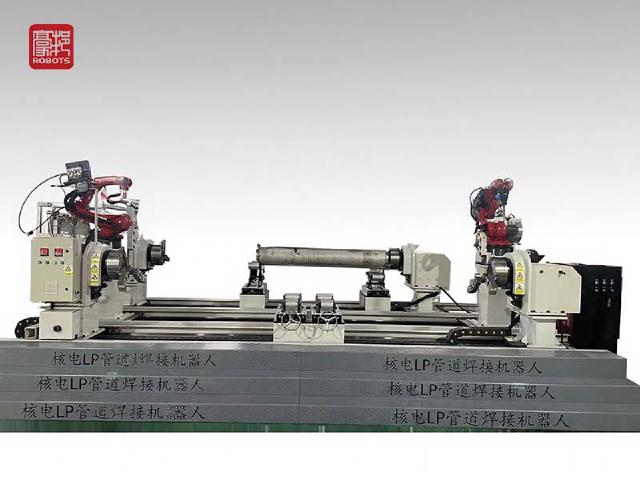

Equipment Site Photo

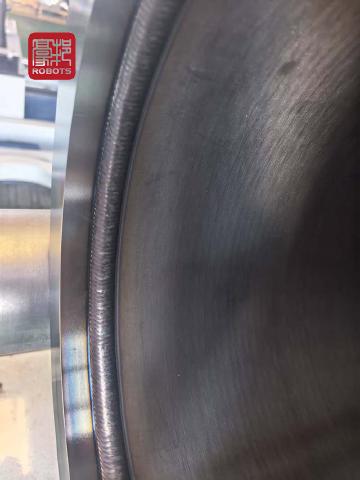

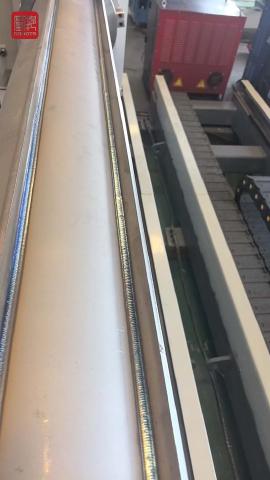

Welding effect
