Plasma Cutting Robot (Saddle)
Robotic Cutting Scope Of Application:

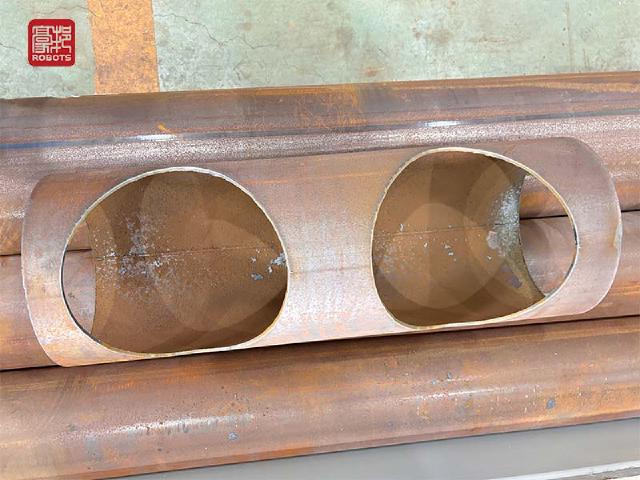

Can cut square steel, H-shaped steel, saddle holes, etc.

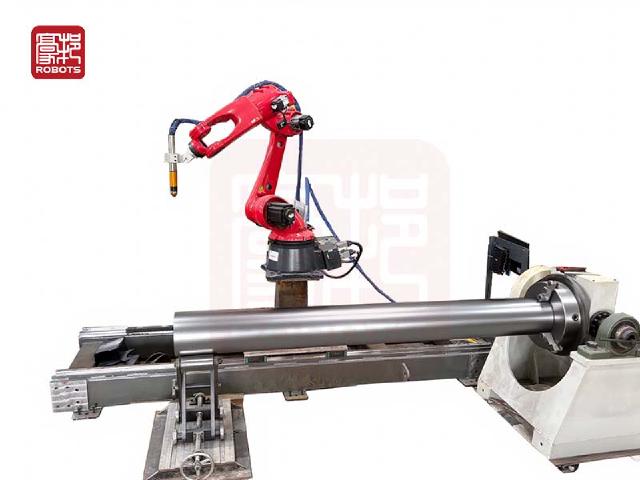

Equipment Components:
Loading rack, push slide, gantry, robot slide, cutting robot, outfeed rack.
Working Process
1、Place the material to be cut horizontally on the scissor fork, then move the material to the center of the chuck and clamp it to adjust the workpiece level.
2、Move the robot cutting gun to the front end of the material, and then the worker goes to the touch screen to open the plasma cutting program and chooses to add a step. In it, select the size of the aperture to be cut and the moving distance in sequence to select the next cutting aperture.
3、After adding, press the start task button and the robot will start working until all tasks are completed.
